Features

¡@

System Connectivity

-  Conforms to the ETSI DECT/GAP standard.

-  Twenty-four or twelve RJ-11 ports are connected to PBAX through standard analog tip/ring twisted-pair cables.

-  Six or three twisted-pair cables with RJ-45 plugs are used to connect the RE to six or three base stations.

-  Standard RS-232 port for system configuration and management.

-  A push-button for handset registration and system parameter reset.

¡@

System performance

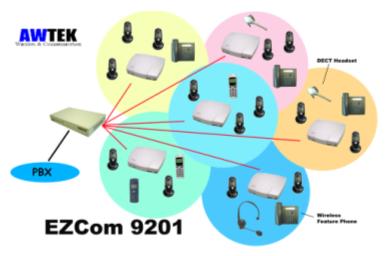

-  Up to six cells and twenty-four mobile handsets.

-  Seamless handover between cells.

-  Up to one km distance between radio exchange and base stations with remote power feeding.

-  Air interface between handset and base station: Up to 50 meter indoors and 300 meter outdoors.

-  System coverage up to 2 Km in diameter.

-  Cell coverage up to 600 meters in diameter.

-  Echo cancellation feature to improve voice quality.

¡@

System flexibility

-  Dynamic channel allocation for frequency usage.

-  Comprehensive indicator LED panel for reporting system power, board status, and the base station status of each base station.

-  User friendly system console for system management and maintenance.

-  Compatible with and adjunct to any PABX system using tip/ring analog ports.

-  Compatible with any DECT/GAP handset that support inter-cell handover capability.

-  Base station is power fed from radio exchange remotely to provide easy installation.

-  Two models (12 and 24 users) to support minimum investment in the first stage, and the flexibility to upgrade capacity.

-  Upgradeable firmware to improve system features.

¡@

System reliability

-  Ensures security against eavesdropping.

-  Complies with the CE mark: EMC/EMS, and LVD Safety Test.

Specifications

¡@
General Characteristics
Standards	DECT (Digital Enhanced Cordless Telecommunications) GAP (Generic Access Profile)
Number of Channels	12 duplex channels
Radio frequency range	1880 ~ 1900 MHz
Channel grid	1728 KHz
Bit rate	1152 Kbit/s
Modulation	GFSK
Voice coding	ADPCM, 32 Kbit/s
Transmitted power	10 mW, average output per channel
System Coverage	Up to 2 km diameter
Signaling method	DTMF and Dial pulsing

General Characteristics

LED Power	(Yellow),
Board Status	(Green) * 2
Base Station Status	(Green) * 6
RS-232 port	9-pin female D-Sub connector
Reset/Registration Push Button	Through the hole of 1.8mm diameter
U interface capability	Up to 1 km, using the cable of AWG #24 twisted pair
U connector	8P8C RJ-45 * 3 (or * 6)
T/R connector	6P2C RJ-11 * 4 * 3 (or * 6)
Input Power	Auto-switching 100 ~ 240 VAC, 50/60Hz
Power Consumption	40 Watts maximum
Housing	Metal
Dimensions	403 * 250 * 56 mm
Temperature	0¢XC to 45¢XC (Standard Operating)
	-20¢XC to 70¢XC (Storage)
Humidity	5% to 95% (Non-condensing)
